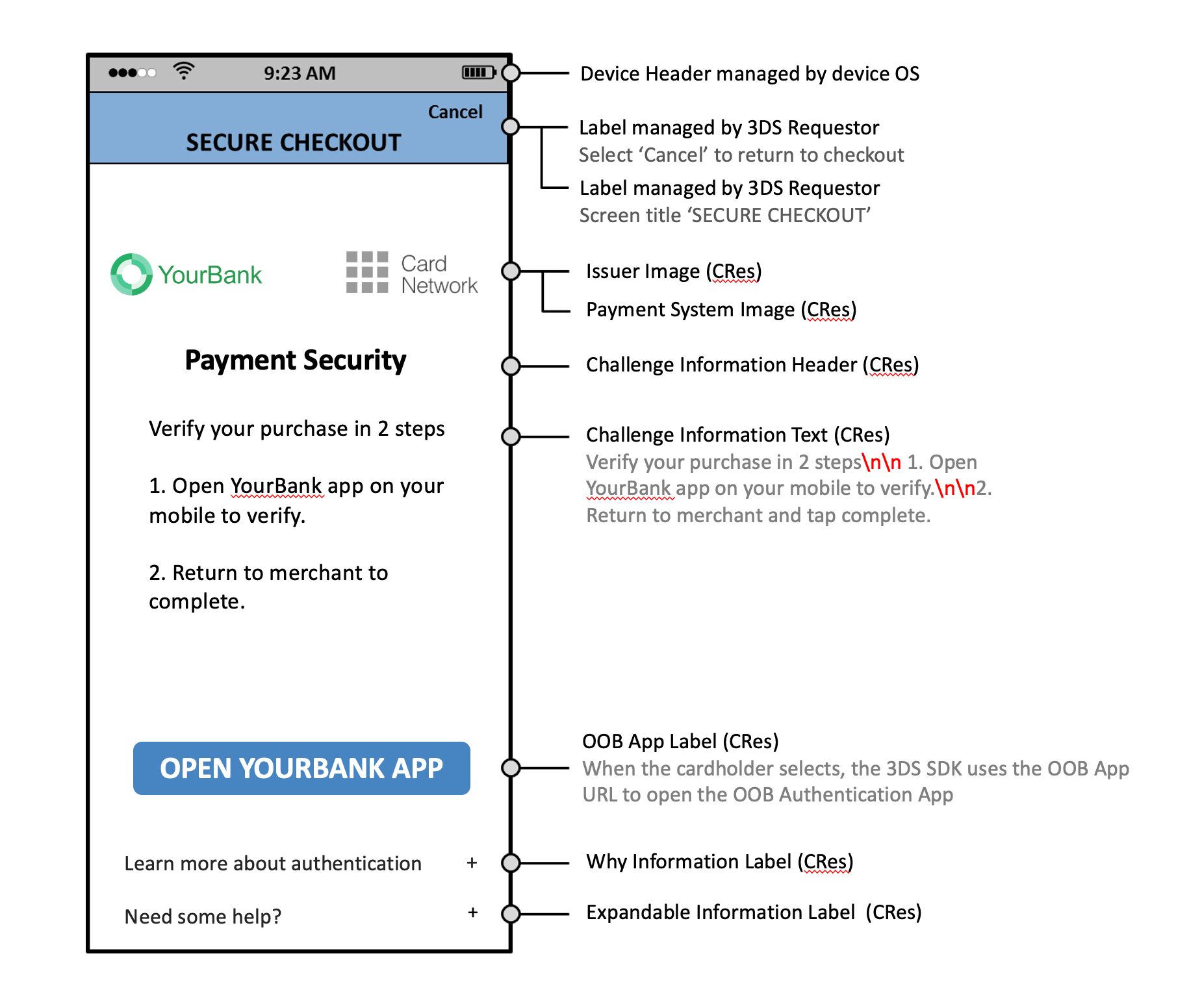

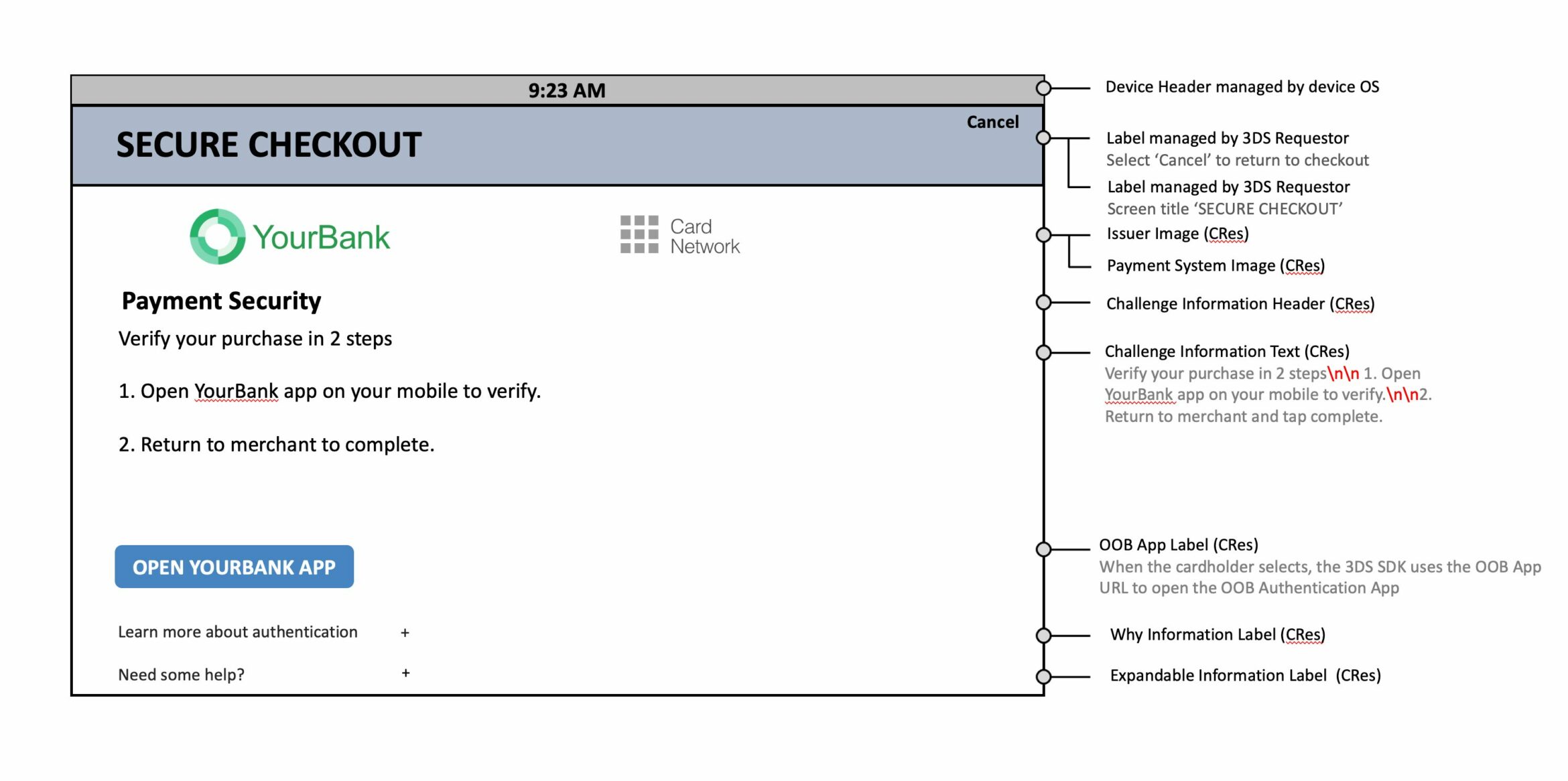

Sample OOB Native UI Template with Automatic OOB App URL Link

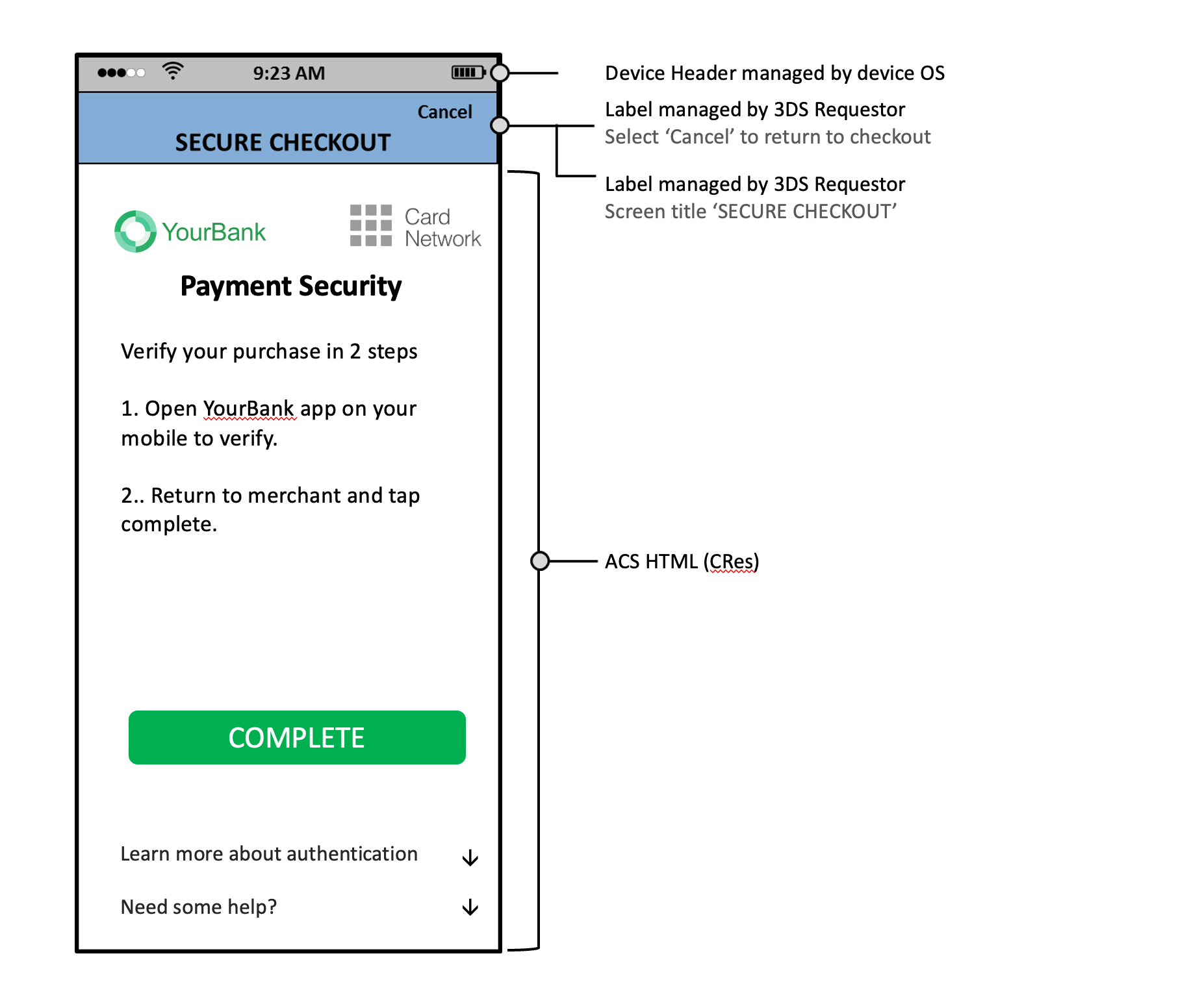

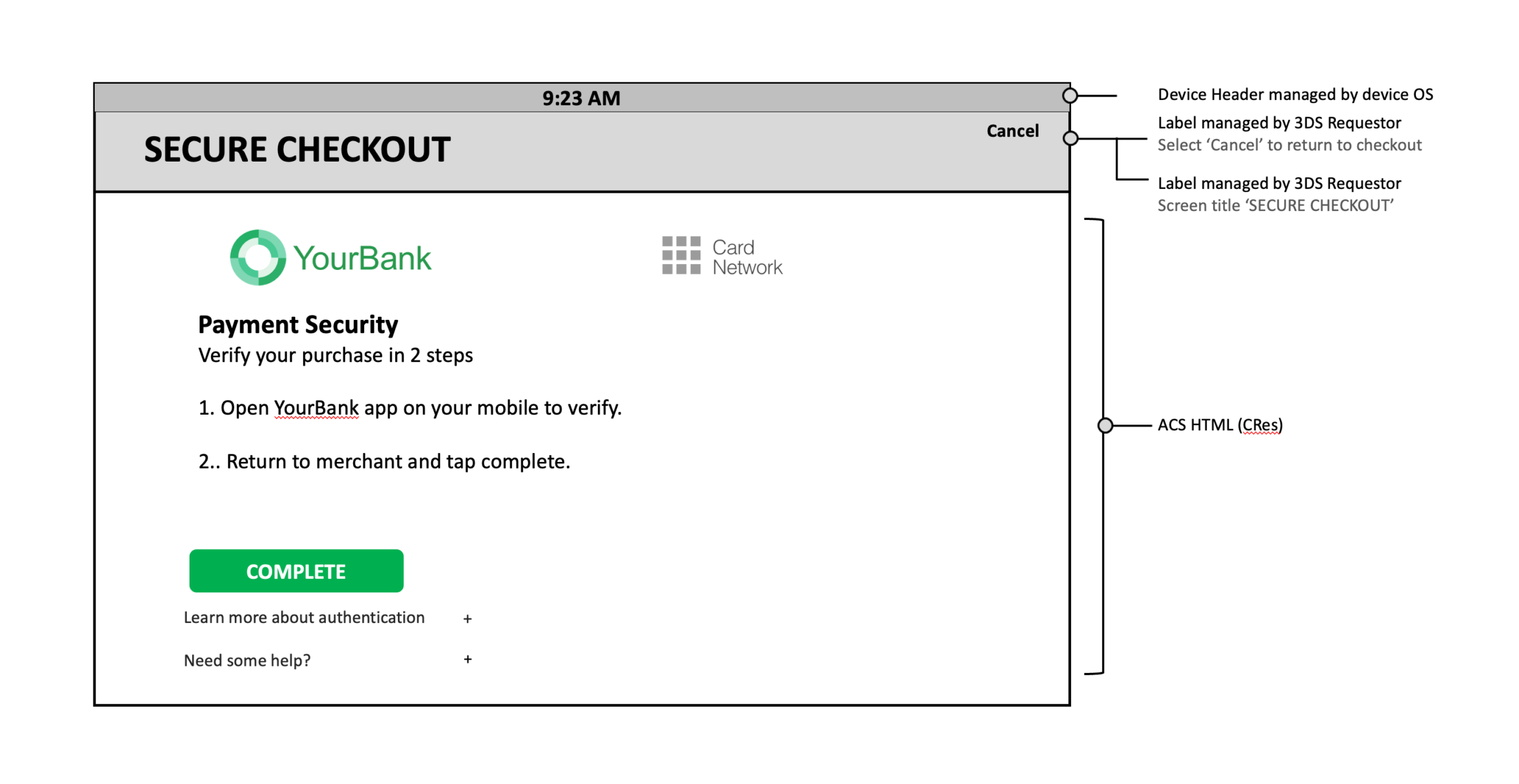

Sample OOB HTML UI Template with Complete Button

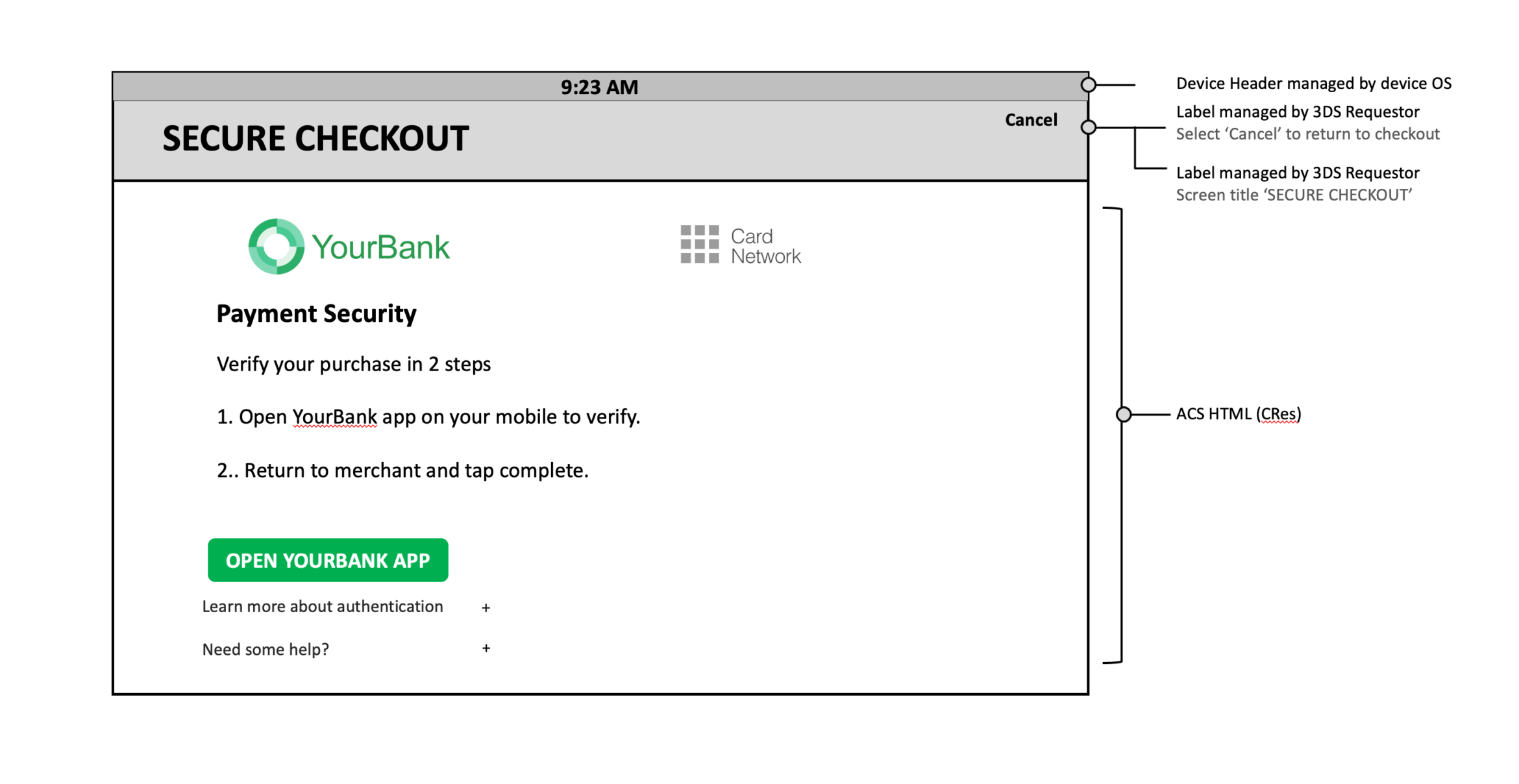

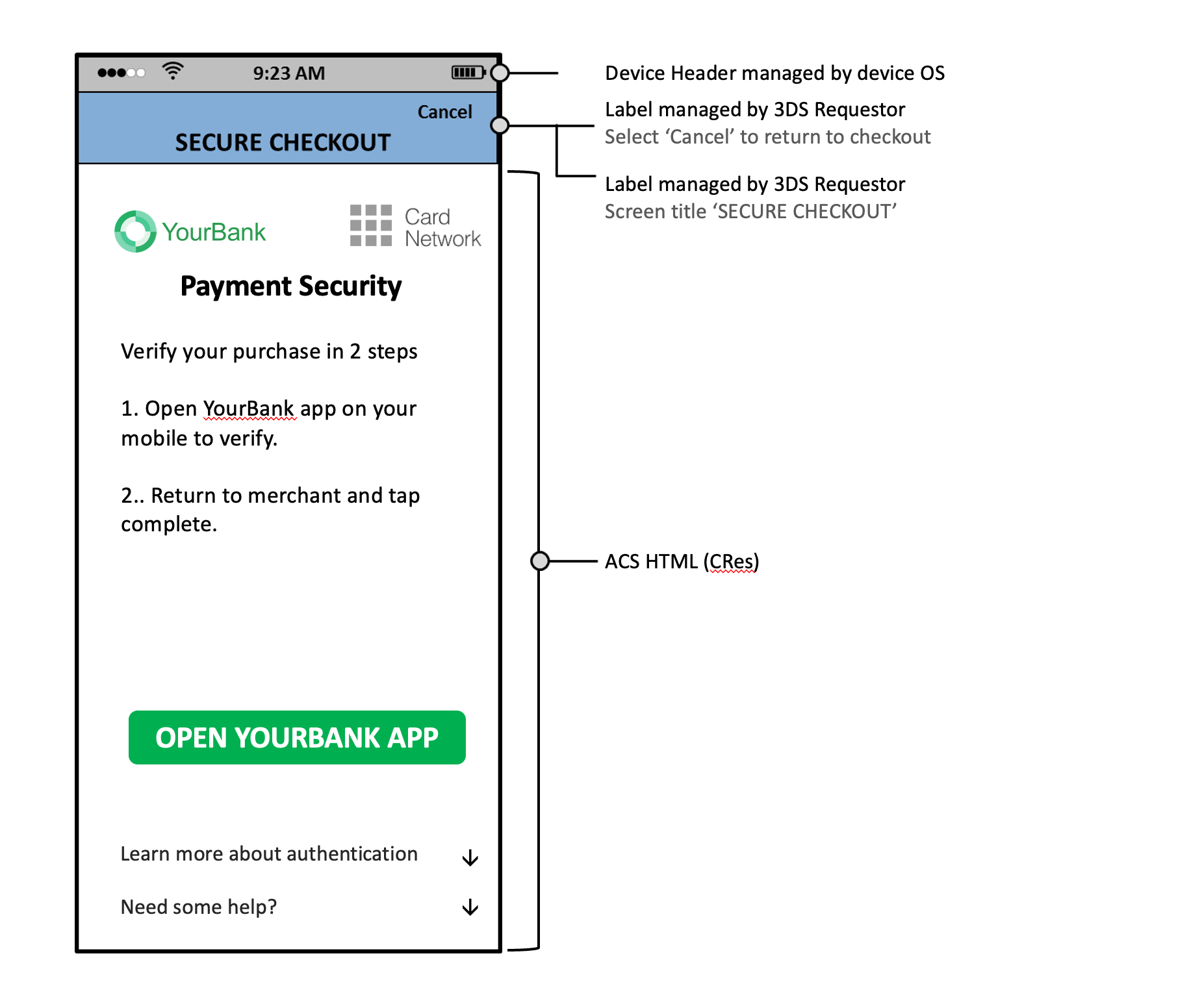

Sample OOB HTML UI Template with OOB App URL Button

OOB v2.2.0 and Bridging Message Extension

Automated switching from the 3DS Requestor App to the OOB Authentication App is possible with version 2.2 of the Core Specification using the Bridging Message Extension.

The flow is similar to version 2.3.1.1 of the Core Specification described in this Section but is limited to ACS UI Type = 04 (OOB).

Note: ACS UI Type = 06 (HTML OOB) is not supported in the Bridging Message Extension.

Preconditions

The ACS and the 3DS SDK shall implement the related OOB requirements as defined in the Bridging Message Extension (refer to the Challenge Data section).

Both the ACS and the 3DS SDK shall support the Challenge Data object in the Bridging Message Extension to make use of this feature.
